DPKS08H00

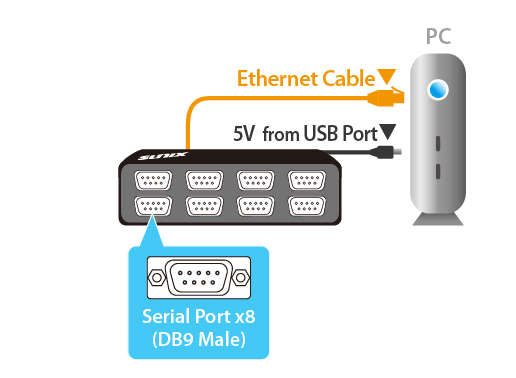

DevicePort® Dock Mode Ethernet enabled 8-port RS-232 Port Replicator



Product Description

SUNIX DevicePort® is the ideal choice to enable your current Legacy I/O devices networking. DPKS08H00 allows users to expand two RS-232 ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O redirection technology, DevicePort® creates physical COM ports that support real time data communication and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.


Features

  • Expands 8 independent RS-232 serial ports over Ethernet networking.
  • Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
  • DevicePort® Dock mode supports secured connection between PC host and DevicePort®. (*Note 1)
  • Built-in SUNIX DevicePort® DPL2000Q High-Performance Ethernet-UART/Printer controller.
  • SUNIX DevicePort® proprietary Ethernet I/O Redirection Technology. (*Note 2)
    – Port auto-mapping with real time data transmit and receive communication.
    – Physical COM port accessed via device manager.
    – Up to 12 COM ports working on windows system simultaneously.
  • Accesses tradition COM port by using existing software and AP.
  • Low power consumption design for Green Environment.
  • 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
  • Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.LinuxWindows_newCEFCCRoHSWEEE

Note:

1. To prevent on-line spy recording, DevicePort® Dock Mode limits specific Ethernet port connection, and it does not works on router or switch operation.
2. Ethernet I/O Redirection technology is SUNIX proprietary protocol for COM, LPT, and digital IO expansion over categpry6/5 Ethernet cable.

 Applications

1. Expand COM / LPT Port Over EthernetSmall PC form factor requirements grow and advance continuously to meet up-and-coming challenges and opportunities. SUNIX DevicePort® products are specifically developed to meet such requirements to replace current add-on card solution. User can expand legacy I/O ports over Ethernet connection that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.
2. Auto-Detect & Port-MappingWith Ethernet hot-plug and system auto-detect capability, user can expand RS-232 COM and LPT port easily without complex software configuration. Just plug RJ45 Ethernet cable between SUNIX DevicePort® and PC host side, system will create physical COM/LPT ports automatically with real time data transmit and receive communication. User can easily access port by using existing software and application, no longer TCP sock protocol compiling.


DevicePort® Auto-Detect & Port-Mapping


3. Daisy Chain TopologySUNIX DevicePort® product built-in dual 10/100 Ethernet channels, one for data downstream to PC host and the other upstream port for Ethernet switch connecting. With dual Ethernet channels feature, DevicePort® supports daisy chain network topology for multiple boxes connection. (Maximum 4 boxes or 12 COM / 3 LPT ports expansion).


DevicePort® Daisy Chain Topology Type 1


DevicePort® Daisy Chain Topology Type 2


 Specifications

Serial Communication

Interface RS-232 Baud rate 50bps ~115.2Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 8-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection ±15KV ESD IEC6000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line

Ethernet Communication

Number of Ports 2-port (*Note 1)
Upstream to Ethernet Switch
Downstream to PC Host
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Power Requirements

Input Voltage 5 to 12VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack

Driver Support

Windows Client XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)

Regulatory Approvals

Hardware • EUR: CE EN55022 Class B, EN55024
• US: FCC Part 15 Class B
• TAIWAN: BSMI: CNS13438
• AS/NZS: C-Tick: CISPR22 AS/NZS
• JAPAN: VCCI
Software Microsoft WHQL Windows
• Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)

Environment

Operation Temperature 0 to 45°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 365.2g
Dimensions 190x120x46(mm), 7.5×4.8×1.8 (inch)
  • One Serial DevicePort
  • USB power cable.
  • Quick Installation Guide
