DPKP01H00

Network printer port expansion box
a printer port, Standard Edition

Product Description


SUNIX DevicePort® is the ideal choice to enable your current Legacy I/O devices networking. DPKP01H00 allows users to expand printer port over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. It is provided with SUNIX DPL2000Q High-Performance Ethernet-Printer controller and exclusive I/O redirection technology. DevicePort® DPKP01H00 creates real time communication physical LPT port and Ethernet-LPT port hot-plug capability; user can expand legacy port easily without complex software configuration that improves deployment efficiency to achieve greater convenience for commercial automation applications.


Features

  • Expands one additional Printer LPT ports over Ethernet networking.
  • Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
  • DevicePort® Dock mode supports secured connection between PC host and DevicePort®.(*Note 1)
  • Built-in SUNIX DevicePort® DPL2000Q High-Performance Ethernet-UART/Printer controller.
  • SUNIX DevicePort® proprietary Ethernet I/O Redirection Technology. (*Note 2)
    – Port auto-mapping with real time data transmit and receive communication.

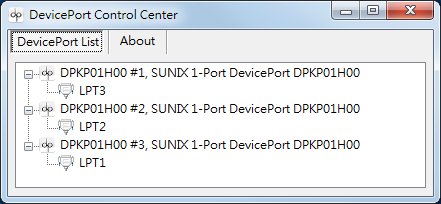

    – Physical LPT port accessed via device manager.
    – Up to 3 LPT ports working on windows system simultaneously.
  • Accesses tradition LPT port by using existing software and AP.(*Note 3)
  • Low power consumption design for Green Environment.
  • Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.LinuxWindows_newCEFCCRoHSWEEE
Note:
1. To prevent on-line spy recording, DevicePort® Dock Mode limits specific Ethernet port connection, and it does not works on router or switch operation.
2. Ethernet I/O Redirection technology is SUNIX proprietary protocol for COM, LPT, and digital IO expansion over categpry6/5 Ethernet cable.
3. LPT port does not support LPT Key Locker and other Parallel devices, but Printer only. It does not support legacy 278/378/3BC ISA address either.

Applications

1. Expand COM / LPT Port Over EthernetSmall PC form factor requirements grow and advance continuously to meet up-and-coming challenges and opportunities. SUNIX DevicePort® products are specifically developed to meet such requirements to replace current add-on card solution. User can expand legacy I/O ports over Ethernet connection that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.

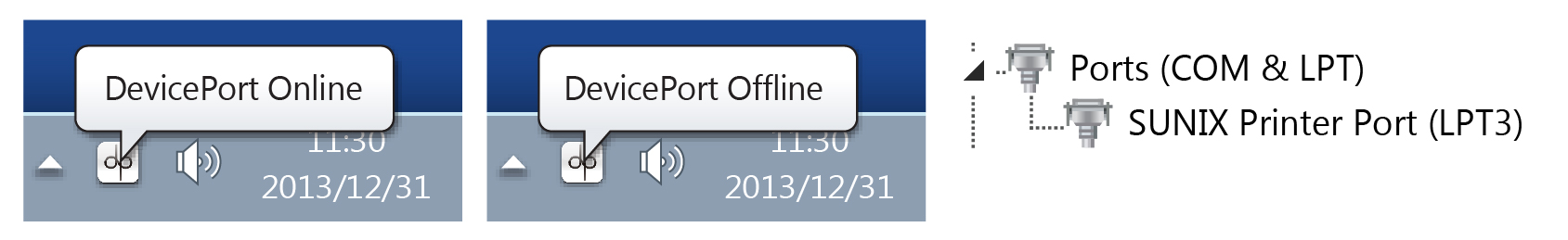

2. Auto-Detect & Port-MappingWith Ethernet hot-plug and system auto-detect capability, user can expand RS-232 COM and LPT port easily without complex software configuration. Just plug RJ45 Ethernet cable between SUNIX DevicePort® and PC host side, system will create physical COM/LPT ports automatically with real time data transmit and receive communication. User can easily access port by using existing software and application, no longer TCP sock protocol compiling.

DevicePort® Auto-Detect & Port-Mapping

3. Daisy Chain Topology
SUNIX DevicePort® product built-in dual 10/100 Ethernet channels, one for data downstream to PC host and the other upstream port for Ethernet switch connecting. With dual Ethernet channels feature, DevicePort® supports daisy chain network topology for multiple boxes connection. (Maximum 4 boxes or 12 COM / 3 LPT ports expansion).

DevicePort® Daisy Chain Topology Type 1

DevicePort® Daisy Chain Topology Type 2



Specifications

Parallel Communication

Interface IEEE1284  Printer Support(*Note 3)
Controller SUNIX DPL2000Q
No. of Port 1-port
FIFO 1Kbyte Hardware / per port
Speed Maximum 2.7MBps

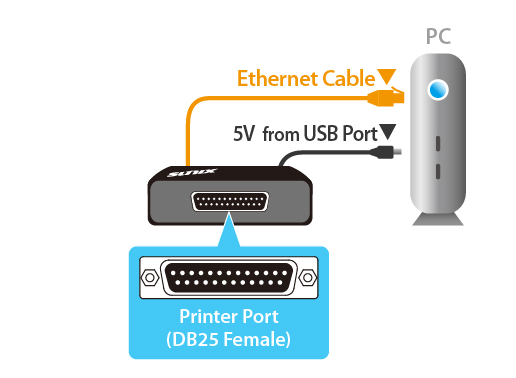

PCB Connector DB25 Female
Protection ±15KV ESD IEC6000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge

Ethernet Communication

Number of Ports 2-port (*Note 1)
Upstream to Ethernet Switch
Downstream to PC Host
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Power Requirements

Input Voltage 5 to 12VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack

Driver Support

Windows Client XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)

Regulatory Approvals

Hardware • EUR: CE EN55022 Class B, EN55024
• US: FCC Part 15 Class B
• TAIWAN: BSMI: CNS13438
• AS/NZS: C-Tick: CISPR22 AS/NZS
• JAPAN: VCCI
Software Microsoft WHQL Windows
• Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)

Environment

Operation Temperature 0 to 45°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 146.3g
Dimensions 121×81.93×27(mm) , 4.7×3.2×1.0(inch)
  • One Parallel DevicePort
  • USB power cable
  • Quick Installation Guide
Download Datasheet
Download Manual
Download Quick Installation Guide
